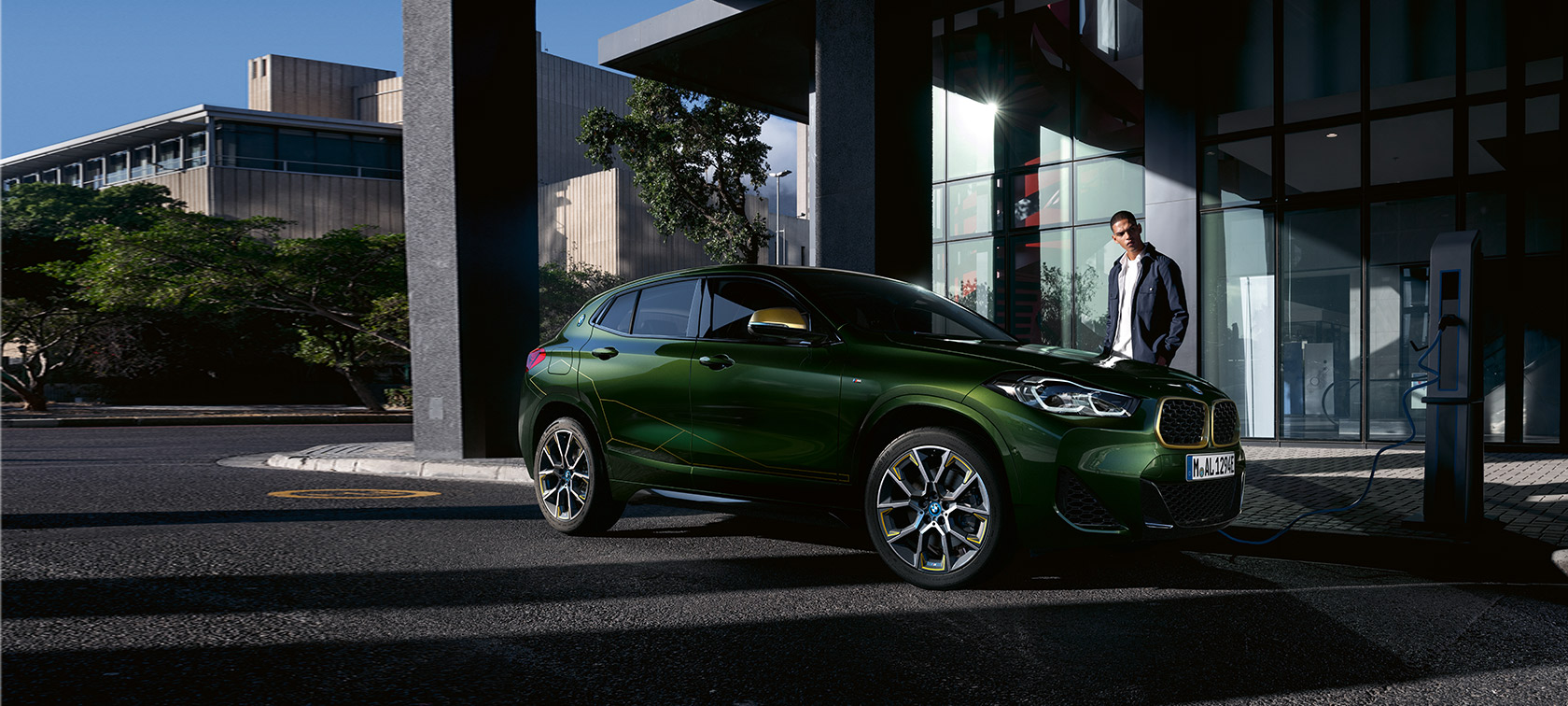

BMW X2 F39 Sanremo front view Three-quarter side view with model

THE X2

BMW X2: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X2.

Read more
THE X2BMW X2: ENGINES & TECHNICAL DATA

BMW X2: TECHNICAL DATA.

Weight

Unladen weight EU in kg 1,485 [1,505]
Max. permissible weight in kg 1,985 [2,005]
Permitted load in kg 575 [575]
Permitted axle load front/rear in kg 1,000/1,020 [1,020/1,020]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 740 [750]
Trailer load 8% (braked) in kg 1,700 [1,700]
Trailer load 12% (braked) in kg 1,700 [1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 100 (136)/4,500-6,500
Engine torque (Nm) at 1/min 220/1,500-4,100
Compression ratio : 1 11.0

Performance

Top speed in km/h 205 [205]
Acceleration 0–100 km/h in s 9.6 [9.6]
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.1-6.1
CO2 combined emissions in g/km 162-139
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,545
Max. permissible weight in kg 2,055
Permitted load in kg 585
Permitted axle load front/rear in kg 1,055/1,030
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 131 (178)/5,000-5,500
Engine torque (Nm) at 1/min 280/1,350-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 227
Acceleration 0–100 km/h in s 7.6
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.2-6.4
CO2 combined emissions in g/km 164-145
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,640
Max. permissible weight in kg 2,145
Permitted load in kg 580
Permitted axle load front/rear in kg 1,090/1,090
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 131 (178)/5,000-5,500
Engine torque (Nm) at 1/min 280/1,350-4,200
Compression ratio : 1 11.0

Performance

Top speed in km/h 224
Acceleration 0–100 km/h in s 7.3
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.6-9.6
CO2 combined emissions in g/km 174-156
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,690
Max. permissible weight in kg 2,190
Permitted load in kg 575
Permitted axle load front/rear in kg 1,120/1,095
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 225 (306)/5,000-6,250
Engine torque (Nm) at 1/min 450/1,800-4,500
Compression ratio : 1 9.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.9
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 8.1-7.5
CO2 combined emissions in g/km 185-170
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 61

Wheels

Tyre dimensions front 225/45 R19 96 W XL
Tyre dimensions rear 225/45 R19 96 W XL
Wheel dimensions and material front 8 J x 19 inches, light-alloy
Wheel dimensions and material rear 8 J x 19 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,550 [1,570]
Max. permissible weight in kg 2,015 [2,030]
Permitted load in kg 540 [535]
Permitted axle load front/rear in kg 1,035/1,055 [1,055/1,055]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 750 [750]
Trailer load 8% (braked) in kg 1,700 [1,700]
Trailer load 12% (braked) in kg 1,700 [1,700]

Engine

Cylinders/valves 3/4
Capacity in ccm 1.496
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 85 (116)/4,000
Engine torque (Nm) at 1/min 270/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 192 [192]
Acceleration 0–100 km/h in s 11.5 [11.5]
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 5.7-5.0
CO2 combined emissions in g/km 149-131
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,585 [1,615]
Max. permissible weight in kg 2,080 [2,115]
Permitted load in kg 570 [575]
Permitted axle load front/rear in kg 1,060/1,050 [1,100/1,050]
Luggage capacity min. (seats up or roof down) in l 470 [470]
Luggage capacity max. (seats down or roof up) in l 1,355 [1,355]
Trailer load (unbraked) in kg 750 [750]
Trailer load 8% (braked) in kg 1,800 [1,800]
Trailer load 12% (braked) in kg 1,800 [1,800]

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 202-207 [202-207]
Acceleration 0–100 km/h in s 10.0-9.3 [10.3-9.3]
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 5.8-4.9
CO2 combined emissions in g/km 152-128
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,180
Permitted load in kg 575
Permitted axle load front/rear in kg 1,115/1,100
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 199-206
Acceleration 0–100 km/h in s 10.2-9.4
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.1-5.4
CO2 combined emissions in g/km 160-142
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm

Weight

Unladen weight EU in kg 1,620
Max. permissible weight in kg 2.125
Permitted load in kg 580
Permitted axle load front/rear in kg 1,100/1,060
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1.355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 224
Acceleration 0–100 km/h in s 7.9
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 5.8-5.2
CO2 combined emissions in g/km 153-136
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,680
Max. permissible weight in kg 2,190
Permitted load in kg 585
Permitted axle load front/rear in kg 1,120/1,100
Luggage capacity min. (seats up or roof down) in l 470
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 211-221
Acceleration 0–100 km/h in s 8.6-7.7
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.3-5.4
CO2 combined emissions in g/km 164-141
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,695
Max. permissible weight in kg 2,170
Permitted load in kg 550
Permitted axle load front/rear in kg 1,140/1,080
Luggage capacity min. (seats up or roof down) in l 470.0
Luggage capacity max. (seats down or roof up) in l 1,355
Trailer load (unbraked) in kg 750.0
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 170 (231)/4,400
Engine torque (Nm) at 1/min 450/1,500-3,000
Compression ratio : 1 16.5

Performance

Top speed in km/h 237
Acceleration 0–100 km/h in s 6.6
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.3-5.7
CO2 combined emissions in g/km 166-148
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 51.0

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,805
Max. permissible weight in kg 2,300
Permitted load in kg 570
Permitted axle load front/rear in kg 1,120/1,250
Luggage capacity min. (seats up or roof down) in l 410
Luggage capacity max. (seats down or roof up) in l 1,290
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 92 (125)/5,000-5,500
Engine torque (Nm) at 1/min 220/1,500-3,800
Compression ratio : 1 11.0

Performance

Top speed in km/h 195
Acceleration 0–100 km/h in s 6.8
Top speed electrical in km/h 135

Fuel consumption

Combined in l/100 km 2.0-1.7
CO2 combined emissions in g/km 44-38
Electricity consumption, combined in kWh/100km 15.4-14.9
Tank capacity, approx. in l 36

Wheels

Tyre dimensions front 225/55 R17 97 W
Tyre dimensions rear 225/55 R17 97 W
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km 49-53
Growth capacity of lithium-ion battery in kWh 10
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.4
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.2

Electric engine

Electric engine power kW (PS) at 1/min 70 (95)/4,500
Electric Engine torque (Nm) at 1/min 165/100-3,000

Combined system power

Combined power kW (PS) 162 (220)
Combined torque Nm 385

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW X2 xDrive20i:
Fuel consumption in l/100 km (combined): 7.6–6.9
CO2 emissions in g/km (combined): 174–156

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers

Read more

FUEL CONSUMPTION AND CO2 EMISSIONS.

  • BMW X2 xDrive20i:
    Fuel consumption in l/100 km (combined): 7.6-9.6
    CO2 emissions in g/km (combined): 174-156

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
