BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

THE M5BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

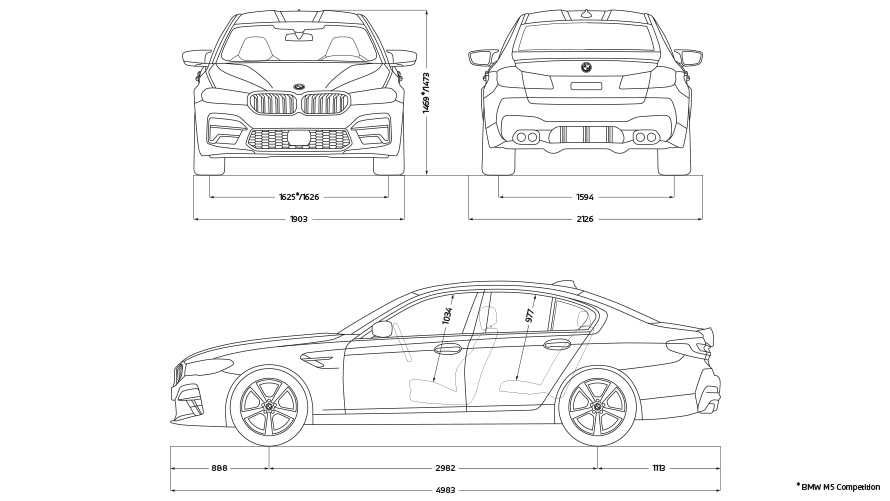

    BMW M5 CS, BMW M5 Competition, BMW M5 and BMW M550i xDrive Sedan – engines, facts and dimensions.

    The key facts and figures for the BMW 5 Series Sedan M Automobiles at a glance: find out all about engines, consumption, CO2 emissions and dimensions of the various BMW M5 models. Compare impressive performance data such as displacement, hp, Nm and acceleration – and discover which of these three exceptional sports sedans suits you best.

    Read more

    ENGINES AND TECHNICAL DATA OF THE BMW 5 SERIES SEDAN M AUTOMOBILES.

    Select model

    Weight

    Unladen weight EU in kg 1,970
    Max. permissible weight in kg 2,440
    Permitted load in kg 545
    Permitted axle load front/rear in kg 1,215/1,260
    Luggage capacity min. (seats up or roof down) in l 530
    Luggage capacity max. (seats down or roof up) in l -
    Trailer load (unbraked) in kg 750
    Trailer load 8% (braked) in kg 2,000
    Trailer load 12% (braked) in kg 2,000

    Engine

    Cylinders/valves 8/4
    Capacity in ccm 4,395
    Stroke/bore in mm 88.3/89.0
    Engine power in kW (hp) at 1/min 441 (600)/6,000
    Engine torque (Nm) at 1/min 750/1,800-5,600
    Compression ratio : 1 10.0

    Performance

    Top speed in km/h 250 (305)
    Acceleration 0–100 km/h in s 3.4

    Fuel consumption

    Urban in l/100 km 16.9-16.7
    Extra-urban in l/100 km 8.1-7.8
    Combined in l/100 km 11.3-11.1
    CO2 combined emissions in g/km 259-254
    Tank capacity, approx. in l 68

    Wheels

    Tyre dimensions front 275/40 ZR19 (105Y)XL
    Tyre dimensions rear 285/40 ZR19 (107Y)XL
    Wheel dimensions and material front 9.5Jx19 inches, light-alloy
    Wheel dimensions and material rear 10.5Jx19 inches, light-alloy

    FUEL CONSUMPTION AND CO2 EMISSIONS.

    BMW M5 CS:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined):242


    BMW M5 Competition:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243


    BMW M5:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243


    BMW M550i xDrive Sedan:
    Fuel consumption in l/100 km (combined): 10.7
    CO2 emissions in g/km (combined): 246


    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.


    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.


    For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.

    Read more

    Fuel consumption and CO2 emissions.

    • BMW M5 CS:
      Fuel consumption in l/100 km (combined): 11.3–11.1
      CO2 emissions in g/km (combined): 258–253

      BMW M5 Competition:
      Fuel consumption in l/100 km (combined): 11.3–11.1
      CO2 emissions in g/km (combined): 259–254

      BMW M5:
      Fuel consumption in l/100 km (combined): 11.3–11.1
      CO2 emissions in g/km (combined): 259–254

      BMW M550i xDrive Sedan:
      Fuel consumption in l/100 km (combined): 10.7–10.4
      CO2 emissions in g/km (combined): 243–238

      The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

      The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

      For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
