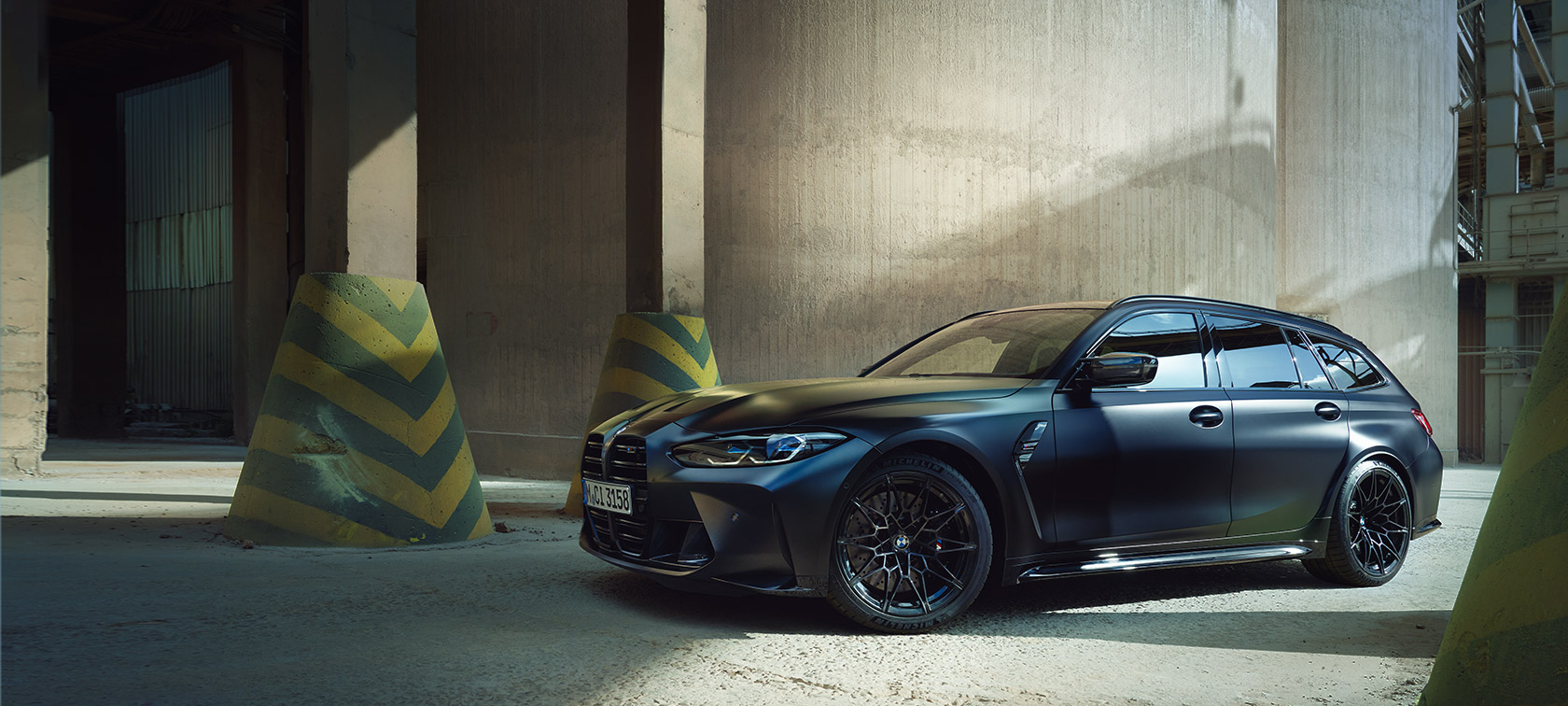

BMW M3 Competition Touring G81 BMW Individual Frozen Black metallic side view standing

THE M3

BMW M3 Competition Touring G81 BMW Individual Frozen Black metallic side view standing

THE NEW BMW 3 SERIES TOURING M AUTOMOBILES: ENGINES & TECHNICAL DATA.

THE M3THE NEW BMW 3 SERIES TOURING M AUTOMOBILES: ENGINES & TECHNICAL DATA.
    BMW 3 Series M Automobiles Touring: Overview

    Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the new BMW 3 Series Touring M Automobiles.

    Read more

    ENGINES AND TECHNICAL DATA OF THE NEW BMW 3 SERIES TOURING M AUTOMOBILES.

    Select model

    Weight

    Unladen weight EU in kg 1,940
    Max. permissible weight in kg 2,370
    Permitted load in kg 505
    Permitted axle load front/rear in kg 1,125/1,275
    Luggage capacity min. (seats up or roof down) in l 500
    Luggage capacity max. (seats down or roof up) in l 1,510
    Trailer load (unbraked) in kg -
    Trailer load 8% (braked) in kg -
    Trailer load 12% (braked) in kg -

    Engine

    Cylinders/valves 6/4
    Capacity in ccm 2,993
    Stroke/bore in mm 90/84
    Engine power in kW (hp) at 1/min 375 (510)/5,510-7,200
    Engine torque (Nm) at 1/min 650/2,750-5,500
    Compression ratio : 1 9.3

    Performance

    Top speed in km/h 250 (280)
    Acceleration 0–100 km/h in s 3.6

    Fuel consumption

    Combined in l/100 km 10.3
    CO2 combined emissions in g/km 235
    Tank capacity, approx. in l 59

    Wheels

    Tyre dimensions front 275/35-19
    Tyre dimensions rear 285/30-20
    Wheel dimensions and material front 9.5 J x 19 inches, light-alloy
    Wheel dimensions and material rear 10.5 J x 20 inches, light-alloy

    Weight

    Unladen weight EU in kg 1,870
    Max. permissible weight in kg 2,390
    Permitted load in kg 595
    Permitted axle load front/rear in kg 1,115/1,350
    Luggage capacity min. (seats up or roof down) in l 500
    Luggage capacity max. (seats down or roof up) in l 1,510
    Trailer load (unbraked) in kg 750
    Trailer load 8% (braked) in kg 1,800
    Trailer load 12% (braked) in kg 1,800

    Engine

    Cylinders/valves 6/4
    Capacity in ccm 2,998
    Stroke/bore in mm 94.6/82.0
    Engine power in kW (hp) at 1/min 275 (374)/5,500-6,500
    Engine torque (Nm) at 1/min 500/1,900-5,000
    Compression ratio : 1 10.2

    Performance

    Top speed in km/h 250
    Acceleration 0–100 km/h in s 4.6

    Fuel consumption

    Combined in l/100 km 8.8-8.1
    CO2 combined emissions in g/km 197-182
    Tank capacity, approx. in l 59

    Wheels

    Tyre dimensions front 225/45 R18 95 Y XL
    Tyre dimensions rear 255/40 R18 99 Y XL
    Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
    Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

    Weight

    Unladen weight EU in kg 1.945
    Max. permissible weight in kg 2,430
    Permitted load in kg 560
    Permitted axle load front/rear in kg 1,160/1,360
    Luggage capacity min. (seats up or roof down) in l 500
    Luggage capacity max. (seats down or roof up) in l 1,510
    Trailer load (unbraked) in kg 750
    Trailer load 8% (braked) in kg 1,800
    Trailer load 12% (braked) in kg 1,800

    Engine

    Cylinders/valves 6/4
    Capacity in ccm 2,993
    Stroke/bore in mm 90.0/84.0
    Engine power in kW (hp) at 1/min 250 (340)/4,400
    Engine torque (Nm) at 1/min 700/1,750-2,250
    Compression ratio : 1 16.5

    Performance

    Top speed in km/h 250
    Acceleration 0–100 km/h in s 4.7

    Fuel consumption

    Combined in l/100 km 6.6-6.0
    CO2 combined emissions in g/km 173-157
    Tank capacity, approx. in l 59

    Wheels

    Tyre dimensions front 225/45 R18 95 Y XL
    Tyre dimensions rear 255/40 R18 99 Y XL
    Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
    Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy
    ​

    Fuel consumption and CO2 emissions.

    • BMW M3 Competition Touring:
      Fuel consumption in l/100 km (combined): 10.3
      CO2 emissions in g/km (combined): 235

      BMW M340i xDrive Touring:
      Fuel consumption in l/100 km (combined): 8.8-8.1
      CO2 emissions in g/km (combined): 197-182

      BMW M340d xDrive Touring:
      Fuel consumption in l/100 km (combined): 6.6-6.0
      CO2 emissions in g/km (combined): 173-157

      The dimensions in the technical drawing are preliminary values.

      Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
