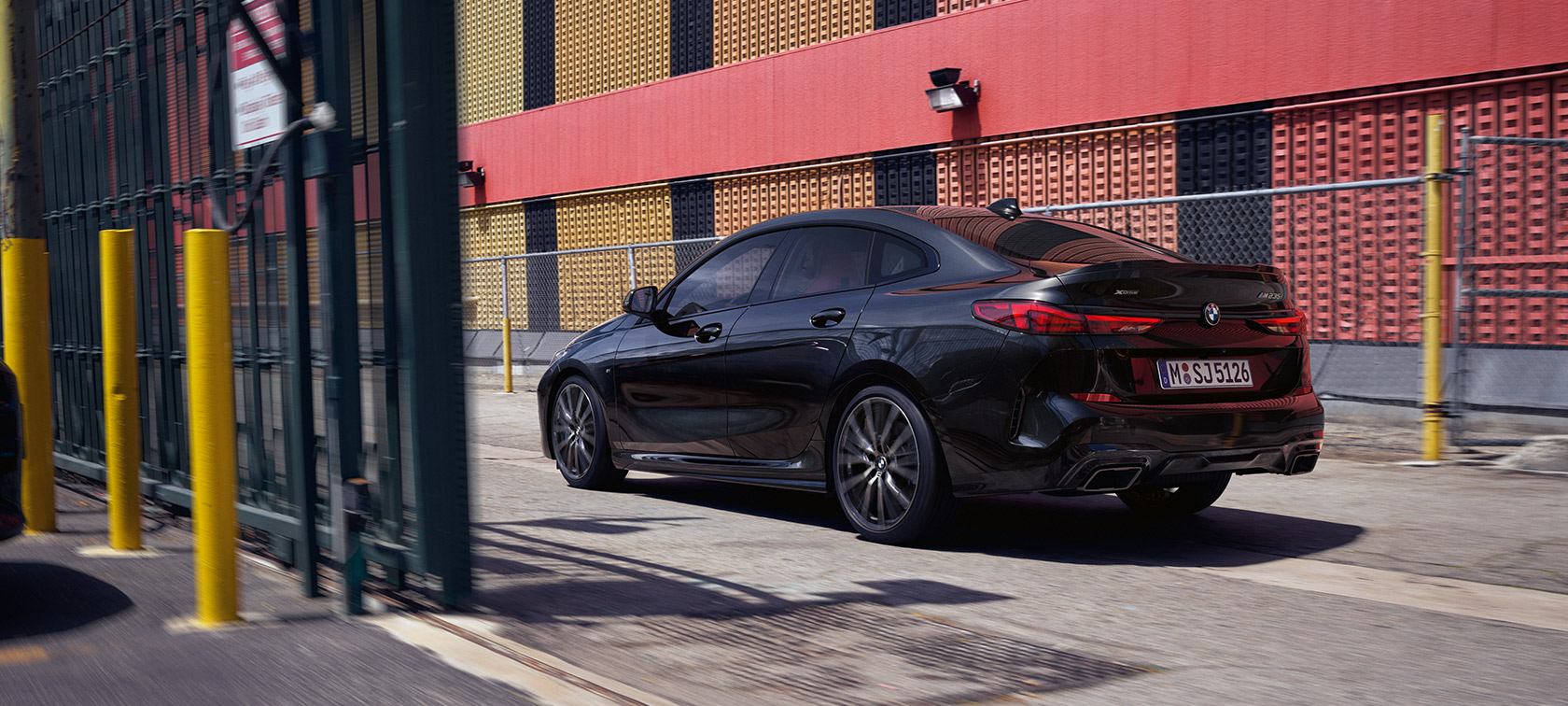

BMW M235i xDrive Gran Coupé Black Sapphire metallic F44 three-quarter rear view with woman in the front

THE 2

BMW M

BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA

Here you will find the key technical data for the BMW M235i xDrive Gran Coupé. Discover more about the engine, output, acceleration, top speed, fuel consumption, emissions and much more besides.

Read more
THE 2BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA

    TECHNICAL DATA.

    Select model

    Weight

    Unladen weight EU in kg 1,645
    Max. permissible weight in kg 2,105
    Permitted load in kg 535
    Permitted axle load front/rear in kg 1,140/1,040
    Luggage capacity min. (seats up or roof down) in l 430
    Luggage capacity max. (seats down or roof up) in l -
    Trailer load (unbraked) in kg -
    Trailer load 8% (braked) in kg -
    Trailer load 12% (braked) in kg -

    Engine

    Cylinders/valves 4/4
    Capacity in ccm 1,998
    Stroke/bore in mm 94.6/82
    Engine power in kW (PS) at 1/min 225 (306)/5,000-6,250
    Engine torque (Nm) at 1/min 450/1,750-4,500
    Compression ratio : 1 9.5

    Performance

    Top speed in km/h 250
    Acceleration 0–100 km/h in s 4.8

    Fuel consumption

    Urban in l/100 km 8.6-8.5
    Extra-urban in l/100 km 6.3-5.6
    Combined in l/100 km 7.1-6.7
    CO2 combined emissions in g/km 162-153
    Tank capacity, approx. in l 50

    Wheels

    Tyre dimensions front 225/40 R18 92 Y XL
    Tyre dimensions rear 225/40 R18 92 Y XL
    Wheel dimensions and material front 8 J x 18 inches, light-alloy
    Wheel dimensions and material rear 8 J x 18 inches, light-alloy

    FUEL CONSUMPTION AND CO2 EMISSIONS.

    • BMW M235i xDrive Gran Coupé:
      Fuel consumption in l/100 km (combined): 7.1–6.7
      CO2 emissions in g/km (combined): 162–153

      The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

      Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

      The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
