THE BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

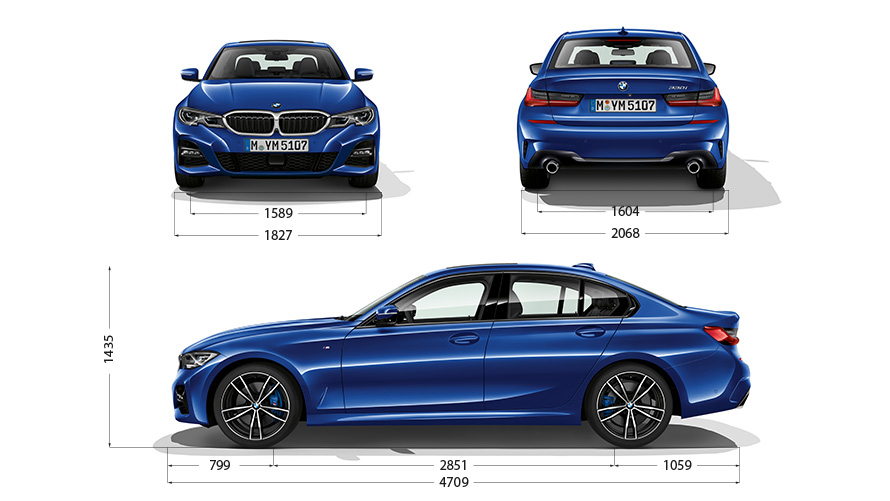

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 3 Series Sedan.

Read more
THE 3THE BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

    TECHNICAL DATA OF THE BMW 3 SERIES SEDAN.

    Weight

    Unladen weight EU in kg 1,545 [1,565]
    Max. permissible weight in kg 2,050 [2,050]
    Permitted load in kg 580 [560]
    Permitted axle load front/rear in kg 965/1,160 [965/1,150]
    Luggage capacity min. (seats up or roof down) in l 480
    Luggage capacity max. (seats down or roof up) in l -
    Trailer load (unbraked) in kg 750
    Trailer load 8% (braked) in kg 1,300
    Trailer load 12% (braked) in kg 1,300

    Engine

    Cylinders/valves 4/4
    Capacity in ccm 1,998
    Stroke/bore in mm 94.6/82.0
    Engine power in kW (hp) at 1/min 115 (156)/4,500-6,500
    Engine torque (Nm) at 1/min 250/1,300-4,300
    Compression ratio : 1 11.0

    Performance

    Top speed in km/h 225 [223]
    Top speed electrical in km/h -
    Acceleration 0–100 km/h in s 8.9 [8.4]

    Fuel consumption

    Combined in l/100 km 7.2-6.3
    CO2 combined emissions in g/km 163-142
    Electricity consumption, combined in kWh/100km -
    Tank capacity, approx. in l 59

    Wheels

    Tyre dimensions front 205/60 R16 96 W XL
    Tyre dimensions rear 205/60 R16 96 W XL
    Wheel dimensions and material front 6.5 J x 16 inches, light-alloy
    Wheel dimensions and material rear 6.5 J x 16 inches, light-alloy

    Range and charging

    Electric range in km -
    Growth capacity of lithium-ion battery in kWh -
    Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
    Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

    Electric engine

    Electric engine power kW (PS) at 1/min -
    Electric Engine torque (Nm) at 1/min -

    Combined system power

    Combined power kW (PS) -
    Combined torque Nm -

    FUEL CONSUMPTION AND CO2 EMISSIONS.

    BMW 330i Sedan:
    Fuel consumption in l/100 km (combined): 7.3–6.4
    CO2 emissions in g/km (combined): 166–147



    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    Read more

    Fuel consumption and CO2 emissions.

    • BMW 330i Sedan:
      Fuel consumption in l/100 km (combined): 7.3-6.4
      CO2 emissions in g/km (combined): 167-147

      The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

      The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.
      For further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
