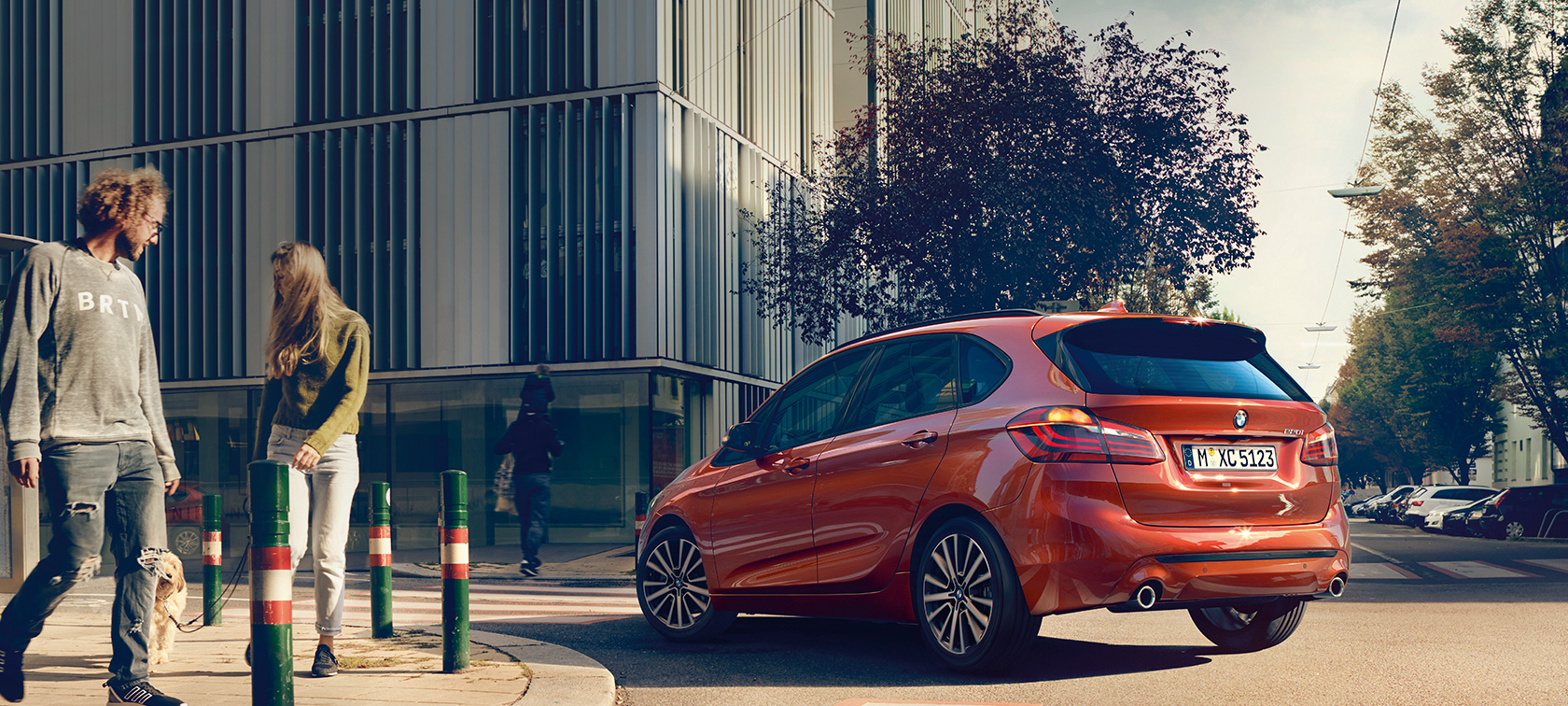

BMW 2 Series Active Tourer 220i F45 Facelift 2018 Sunset Orange metallic three-quarter rear view driving on the road

THE 2

BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA

The most important facts and figures about the BMW 2 Series Active Tourer at a glance: Find out here about engines, performance, weight, fuel consumption, CO2 emissions, dimensions, boot capacity and much more.

Read more
THE 2BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA

TECHNICAL DATA BMW 2 SERIES ACTIVE TOURER.

Weight

Unladen weight EU in kg 1,430
Max. permissible weight in kg 1,910
Permitted load in kg 525
Permitted axle load front/rear in kg 985/970
Luggage capacity min. (seats up or roof down) in l 468
Luggage capacity max. (seats down or roof up) in l 1,510
Trailer load (unbraked) in kg 695
Trailer load 8% (braked) in kg 1,100
Trailer load 12% (braked) in kg 1,100

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Engine power in kW (HP) at 1/min 80 (109)/4,300-6,500
Engine torque (Nm) at 1/min 190/1,380-3,800
Compression ratio : 1 11.0

Performance

Top speed in km/h 190
Acceleration 0–100 km/h in s 11.3
Electrical engine top speed in km/h -

Fuel consumption

Urban in l/100 km 7.1
Extra-urban in l/100 km 4.6
Combined in l/100 km 5.5
CO2 combined emissions in g/km 125
Tank capacity, approx. in l 51

Wheels

Tyre dimensions front 205/60 R16 96W XL
Tyre dimensions rear 205/60 R16 96W XL
Wheel dimensions and material front 7 J x 16 inches, light-alloy
Wheel dimensions and material rear 7 J x 16 inches, light-alloy

Range and charging

Electric range in km -
Energy consumption in kWh/100km
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (HP) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (HP) -
Combined torque Nm -

Fuel consumption and CO2 emissions.

  • BMW 220i Active Tourer:
    Fuel consumption in l/100 km (combined): 5.4
    CO2 emissions in g/km (combined): 123

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW 220i Active Tourer:
Fuel consumption in l/100 km (combined): 5.4
CO2 emissions in g/km (combined): 123

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
